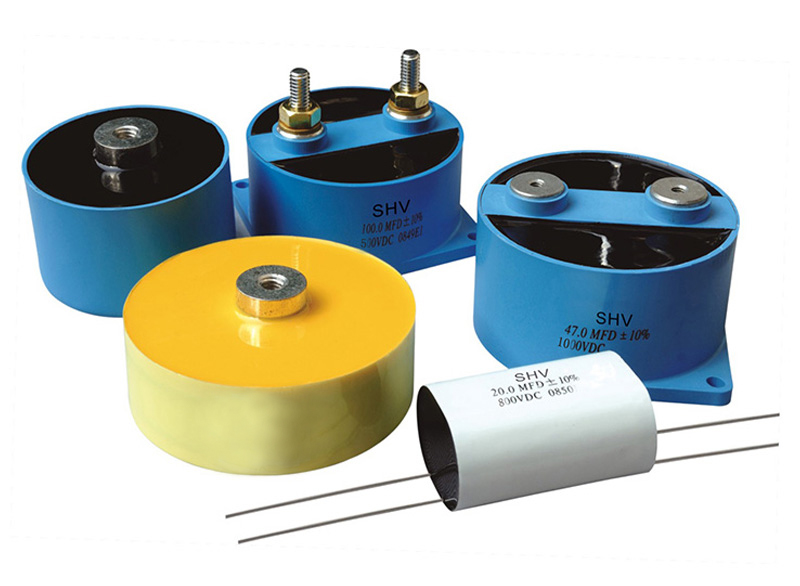

Non-inductive construction
High RMS, current capabilities
Overvoltage withstanding
Excellent Self-Healing
Low ESR and ESL
Long life
Operating temperature up to 105℃
OEM customization available
Induction heating , Traction, Power supplies and resonant converter, Speed converter , Welding, Electrical vehicle , Wind mill, Energy Storage, Film technology to replace electrolytic technology.
Rated Voltage: 300V-3000V (DC)
Capacitance: 0.22-400MF
Tolerance: ±10%
Insulation voltage: 7kVrms/60sec/50Hz (between shorted terminals and earth)
Test Voltage: 150% of rated voltage for 10 seconds at 25℃
Operating Temperature: -40℃ to +105℃
Construction: Non-inductive wound metallized polyester or polypropylene.
Case: Self-extinguishing plastic case (UL 94 V0 ) filled thermosetting resin.

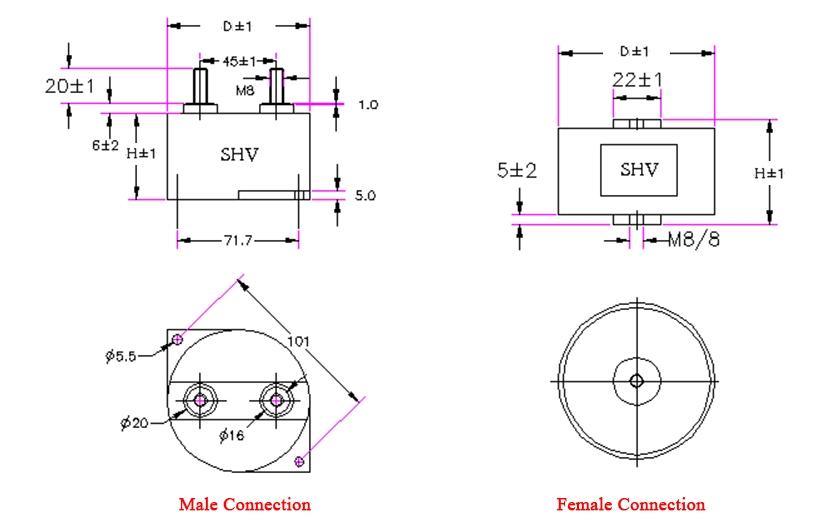

Lead Material: Male Connection (M8×20mm max torque 8.5Nm) Female threaded connection (M5×7.5mm max torque 2.5Nm)
| Vndc (VDC) | 300 | 400 | 500 | 600 | 700 | 800 | |||||||||||||||||||||||||
| Capacitance (uF) | 180 | 195 | 250 | 350 | 400 | 100 | 120 | 150 | 180 | 220 | 125 | 200 | 275 | 25 | 100 | 150 | 220 | 100 | 150 | 220 | 1 | 1.5 | 2 | 3 | 3.5 | 4 | 5 | 6 | 66 | 100 | 140 |
| H x D (mm) | 34 x 85 | 34 x 85 | 40 x 85 | 51 x 85 | 51 x 85 | 34 x 85 | 34 x 85 | 40 x 85 | 51 x 85 | 51 x 85 | 40 x 85 | 51 x 85 | 64 x 85 | 34 x 85 | 40 x 85 | 51 x 85 | 64 x 85 | 40 x 85 | 51 x 85 | 64 x 85 | 49 x 40 | 49 x 55 | 52 x 60 | 52 x 72 | 52 x 72 | 52 x 82 | 52 x 82 | 52 x 92 | 40 x 85 | 51 x 85 | 64 x 85 |
| Irms max (A) | 100 | 100 | 100 | 100 | 110 | 80 | 100 | 100 | 80 | 100 | 90 | 90 | 90 | 90 | 100 | 110 | 100 | 100 | 100 | 100 | 15 | 20 | 30 | 45 | 50 | 60 | 70 | 75 | 100 | 90 | 100 |
| Ls max (nH) | 18 | 18 | 25 | 32 | 32 | 18 | 18 | 25 | 32 | 32 | 25 | 32 | 40 | 18 | 25 | 32 | 40 | 25 | 32 | 40 | / | / | / | / | / | / | / | / | 25 | 32 | 40 |
| Rs (mΩ) | 0.8 | 0.8 | 0.6 | 0.8 | 0.8 | 0.7 | 0.6 | 0.7 | 1 | 0.9 | 0.6 | 0.8 | 0.9 | 0.7 | 0.6 | 0.9 | 1 | 0.6 | 0.9 | 1 | 2.5 | 1.6 | 1.3 | 0.9 | 0.9 | 0.8 | 0.7 | 0.6 | 0.7 | 1 | 1.3 |
| Rth (℃/W) | 4.7 | 4.4 | 5.2 | 7.2 | 7.1 | 4.7 | 4.1 | 5 | 8.5 | 7.2 | 5 | 6.7 | 8.7 | 4.3 | 4.8 | 6.9 | 8.4 | 4.8 | 6.9 | 8.4 | 14 | 10 | 6.1 | 4.5 | 4.5 | 3.5 | 2.5 | 2.5 | 4.7 | 6.7 | 8.4 |
| Vndc (VDC) | 900 | 1000 | 1100 | 1300 | 2000 | 2500 | ||||||||||||||||||||||
| Capacitance(uF) | 12 | 38 | 47 | 66 | 70 | 100 | 140 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 47 | 70 | 100 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 1 | 1.5 | 2 | 1 | 1.25 |
| H x D (mm) | 34 85 | 34 85 | 40 85 | 40 85 | 51 85 | 64 85 | 64 85 | 52 60 | 52 60 | 52 72 | 52 72 | 52 82 | 52 82 | 52 92 | 40 85 | 51 85 | 64 85 | 59 55 | 59 60 | 62 72 | 62 72 | 62 82 | 62 92 | 62 72 | 62 82 | 62 92 | 62 82 | 62 92 |
| Irms max(A) | 70 | 100 | 100 | 100 | 100 | 90 | 100 | 20 | 30 | 40 | 60 | 60 | 65 | 70 | 100 | 100 | 90 | 18 | 25 | 35 | 40 | 50 | 65 | 38 | 55 | 75 | 50 | 65 |
| Ls max(nH) | 18 | 18 | 25 | 25 | 32 | 40 | 40 | / | / | / | / | / | / | / | 25 | 32 | 40 | / | / | / | / | / | / | / | / | / | / | / |
| Rs (mΩ) | 0.9 | 0.7 | 0.8 | 0.7 | 1.2 | 1.1 | 1.3 | 2.5 | 1.5 | 1.2 | 1 | 0.9 | 0.8 | 0.7 | 0.8 | 1.2 | 1.1 | 3 | 2 | 1.5 | 1.3 | 1.2 | 1 | 1.5 | 1 | 0.9 | 1.2 | 1 |
| Rth (℃/W) | 4.4 | 3.9 | 4.6 | 4.7 | 6.7 | 8.2 | 8.4 | 10.5 | 6.1 | 4.5 | 3.7 | 3.2 | 2.9 | 2.5 | 4.6 | 6.7 | 8.2 | 13 | 10 | 6.5 | 4.8 | 4.4 | 3.4 | 6.2 | 4 | 3.3 | 4 | 3.3 |
