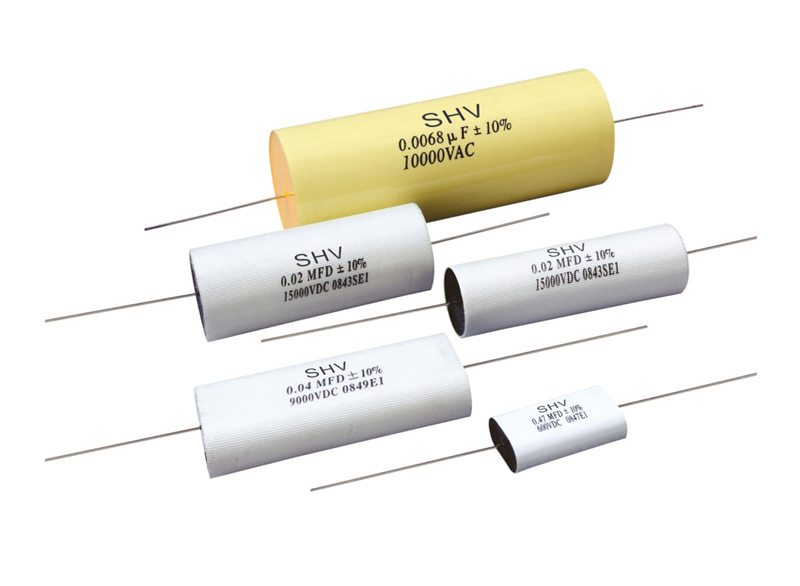

Polypropylene Dielectric Capacitor

Features:

High Stability

Non-inductive construction

Lowest Dissipation Factor

Low ESL and ESR

Self-Healing

OEM customization available

Application:

X-ray Equipment, High Voltage Power Supply, Multiplier, Electrical System

Electrical Characteristics

Rated Voltage: 2KV-30KV (DC) 1KV-6KV(AC)

Dissipation Factor: ≤0.001( 20℃ 1KHZ )

Insulation Resistance: ≥50000MΩ ( 20℃, 2min,500V )

Test Voltage: 120% ~ 150% of rated voltage for 30 seconds.

Temperature: -55℃ to +85℃ at full rated voltage.

Tolerance: ±2% ±5% ±10%

Physical Characteristics

Construction: Non-inductive wound metallized polypropylene.

Case: Metallized polypropylene wrap and epoxy end fill.

Case style: Round. Oval available upon request.

Lead Material: Axial solder coated or tinned solid wire, AWG as specified in table.

Lead Strength: Capable of withstanding a five pound pull force on lead axils.

Selection Table:

Capacitance	2KV			4KV			6KV			8KV			10KV			12KV			15KV			20KV
Capacitance	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead
uF	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG
0.001	30	6	22	29	7.5	22	37	8	22	45	9	22	49.5	10	22	60	9	22	72	10	22	72	12	20
0.0015	30	6	22	29	8	22	37	9	22	45	10	22	49.5	11	22	60	10	22	72	11	22	72	15	20
0.0022	30	6	22	29	9	22	37	11	22	45	12	22	49.5	12	22	60	12	22	72	12	22	72	17	20
0.0033	30	6.5	22	29	11	22	37	12	22	45	14	22	49.5	14	22	60	13	22	72	14	22	72	20	20
0.0047	30	7	22	29	12	22	37	14	22	45	16	22	49.5	17	22	60	15	22	72	17	22	72	23	20
0.0056	30	7	22	29	13	22	37	15	22	45	18	22	49.5	18	22	60	17	22	72	18	22	72	25	20
0.0068	30	7.5	22	29	14	22	37	16	22	45	19	22	49.5	19	20	60	18	20	72	19	20	72	28	20
0.0082	30	8	22	29	15	22	37	18	22	45	20	22	49.5	21	20	60	19	20	72	21	20	72	30	20
0.01	30	8.5	22	29	16	22	37	19	22	45	22	22	49.5	23	20	60	21	20	72	23	20	72	33	20
0.015	30	9	22	29	19	22	37	23	22	45	26	22	49.5	28	20	60	25	20	72	27	20	72	40	20
0.022	30	11	20	29	23	20	37	27	20	45	31	20	49.5	33	20	60	30	20	72	33	20	72	48	20
0.033	30	12	20	36	19	20	49	22	20	62	25	20	81	28	20	71	34	20	72	40	20	92	47	20
0.047	30	14	20	36	22	20	49	26	20	62	30	20	81	33	20	71	40	20	82	44	20	92	55	20
0.056	30	15	20	36	24	20	49	28	20	62	32	20	81	36	20	71	44	20	82	47	20	92	60	20
0.068	30	16	20	36	26	20	49	31	20	62	35	20	81	39	20	71	48	20	82	52	20	92	66	20
0.082	30	18	20	36	28	20	49	34	20	62	38	20	81	43	20	71	52	20	82	57	20	113	53	20
0.1	30	19	20	36	31	20	49	37	20	81	39	20	81	47	20	100	44	20	117	48	20	113	60	20
0.15	46	7	20	48	20	20	85	35	20	81	48	20	100	52	20	100	53	20	117	58	20	-	-	-
0.22	46	19	20	48	24	20	85	42	20	81	58	20	100	64	20	100	64	20	-	-	-	-	-	-
0.33	46	23	20	48	28	20	85	50	20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0.47	46	27	20	48	33	20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0.56	46	29	20	48	36	20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0.68	46	31	20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
